Product Introduction
Material & Parameter
Out Bag ： PP Woven 95g/㎡(Level 1） Inner Bag： Polymide(9 layers co-extrusion PA film) Structure: Out Bag+Inner Bag +Air valve Compressive Strength: 20Kpa-80Kpa/5T-40T Inner Bag Heat Seal Strength: ≥35N/15MM Inner Bag Longitudinal Tensile Strength:
≥26Mpa Inner Bag Lateral Tensile Force: ≥26Mpa Outer Bag Meridional Tensile Force:≥628N/CM Outer Bag Weft Tensile Strength:
≥568N/CM
≥26Mpa Inner Bag Lateral Tensile Force: ≥26Mpa Outer Bag Meridional Tensile Force:≥628N/CM Outer Bag Weft Tensile Strength:
≥568N/CM
|

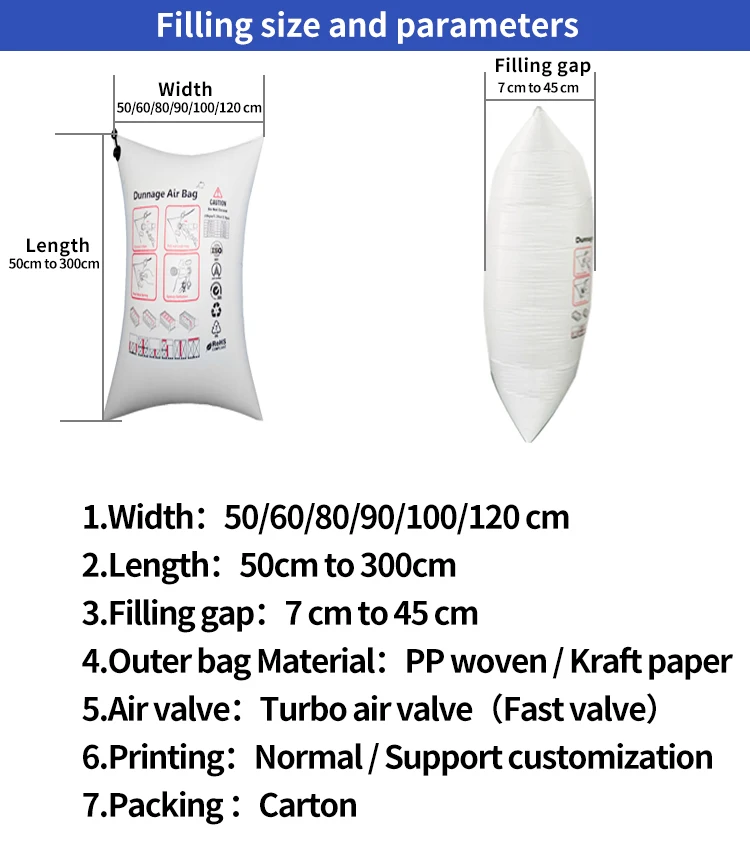

Size (cm)
|
Weight （kg）
|
Max Air Pressure
|
Bearing Force
|
Filling The Width
|
Filling The Hight
|
|
50*100
|
0.3
|
20 Kpa
|
2.8 T
|
10-25 cm
|
90 cm
|
|
50*150
|
0.38
|
20 Kpa
|
2.5 T
|
10-25 cm
|
140 cm
|
|
60*120
|
0.35
|
20 Kpa
|
3.0 T
|
10-25 cm
|
110 cm
|
|
80*120
|
0.54
|
20 Kpa
|
3.45 T
|
10-40 cm
|
110 cm
|
|
80*160
|
0.62
|
20 Kpa
|
3.5 T
|
10-40 cm
|
150 cm
|
|
90*180
|
0.86
|
20 Kpa
|
5-7 T
|
10-45 cm
|
170 cm
|
|
100*180
|
0.88
|
20 Kpa
|
5-7 T
|
10-50 cm
|
170 cm
|
|
100*200
|
1.04
|
20 Kpa
|
5-7 T
|
10-50 cm
|
190 cm
|
|
120*240
|
1.49
|
20 Kpa
|
6-7 T
|
10-50 cm
|
230 cm
|
Turbo Inflatable Tool And Normal Inflatable Tool
Turbo Inflatable Tool MM inflatable dunnage air bags equipped with a patented valve, which allows fast inflation, when connect with the quick inflator, the time for inflation can be reduced significantly beside ensuring consistent pressure.
Turbo Air Valve And Normal Air Valve
Turbo Valves Faster air inflation speed Higher air tightness Safer and more convenien
Air valve testing
Air pressure testing
Inner bag testing
Main Product
Our Advantages
Best prices, premium quality & excellent service
✔ More than 12 year’s production experience gives us a great advantage from the raw materials to delivery.
✔ Production factory only 25 Kilometers from Shanghai seaport, 30 Kilometers from Pudong airport, very convenient to deliver your order.
✔ Daily production capacity at least 10,000 pieces (according to the size), mature quality control system, sophisticated workers, made each piece of our dunnage bag worth its value.
✔ Our team leader has been engaging in International trading since 1989, can deal with any complex situation
